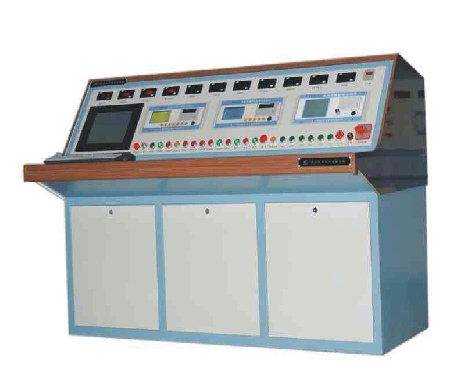

Semi-automatic transformer comprehensive test bench is compact in structure, simple operation, intuitive, high degree of automation, and extremely reliable

Product Features

   The system test project is controlled by a computer and can be operated separately manually. From the function, the test bench inputs and saves the test parameters from the computer, and manually completes gear switching, current shifting, characteristics, and the common frequency boost and bucking function. The software works under Windows98, Windows2000, and WindowsXP platforms. The platform can be checked according to the test number, capacity, test period and transformer type. The human-machine has a good interface and the operation is intuitive and concise.

　　◆ The transformer comprehensive test bench integrates test wiring display, data acquisition, analysis and processing, measurement control, storage, printing and protection, and the entire test process is automatically completed, with outstanding advantages of high efficiency and high precision.

　　◆ The transformer comprehensive test bench has an LCD backlit display, and 18 parameters such as three-phase voltage and current are displayed at the same time; digital instruments replace pointer instruments, and all test data are displayed in real time (locked) on the screen, avoiding parallax during the test Errors caused by many factors such as conversion and calculation. Makes higher test accuracy. In particular, it completely solves the difficulty of operators reading multiple meters at the same time and recording multiple sets of data at the same time, ensuring the accuracy and reliability of the test data.

　　◆ Data processing adopts automatic storage and microcomputer printing, and the data tables are beautiful and standardized, with neat and clear handwriting. Fill in the corresponding form in real time to avoid manual copying and recording, and ensure the authenticity and reliability of the data. Users also set the printing format themselves as needed.

　　◆ The transformer comprehensive test bench also has functions such as waveform variation correction, test wire resistance correction, and transformer error correction.

　　◆ It can be made into desktop, portable, simple, standard type according to user needs, and is easy to use in different occasions.

　　◆ Multi-screen menu operation, easy to operate, and automatically calculates each parameter.

　　◆ The voltage and current ratio can be set to directly display the measured value.

　　◆ The test bench uses an Access database to store the original data, which can easily store all parameters, test data, ambient temperature, test date and other information of the tested equipment to be stored together to form equipment files, which is convenient for future query and analysis.

 　　◆ The power in the low power factor range can be measured.

 　　◆ It has strong anti-interference, has overload alarm indication, line connection protection, and has functions such as overvoltage and overcurrent protection.

Product Features

    It is suitable for testing single and three-phase power and various special transformers with capacity of 180,000KVA, voltage levels of 220KV, 110KV, 35KV and 10KV, etc., and is mainly aimed at manufacturers with large single-shift output and large batches of the same model.

Product alias

Transformer comprehensive test bench, transformer tester, fully automatic transformer comprehensive test bench
