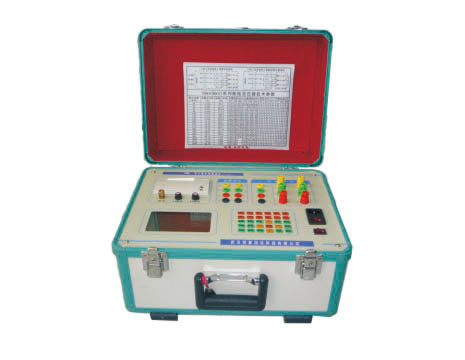

The transformer capacity tester can accurately measure the capacity of various distribution transformers, and passive measurement is convenient and accurate. It uses the LCD screen as a display window, the graph screen menu is operated and equipped with Chinese character prompts, and the display interface with multiple parameters in one screen is friendly, the human-computer dialogue interface is simple and fast, and is willing to choose from power users at all levels. product.

Product Features

1. The instrument has exquisite circuit design, unique thinking, superior performance and powerful functions, and fully meets the requirements of on-site distribution power transformer capacity testing.

2. The instrument adopts advanced A/D synchronous AC sampling and digital signal processing technology, which is simple to operate, convenient to connect and accurate and reliable data, which solves the problem of distribution transformer capacity testing, and can display and print measurement data that users care about. .

3. This instrument is mainly used for capacity testing of distribution transformers. The built-in test power supply can complete the capacity test of 100 distribution transformers with 2500KVA and below in one charge.

4. The human-computer interface of this instrument uses a blue screen (240 * 128) Chinese character graphic display. The menu is strictly classified and gradually guides you to complete the test. You only need to turn on the computer and press any key. The menu provided by the instrument will guide you. Complete the experiment you need. Using this instrument can greatly improve work efficiency and reduce labor intensity.

Technical parameters

1. Active part:

Voltage measurement range: 0~10V Current measurement range: 0~10A;

2. Passive part:

Voltage measurement range: 0~750V wide quantity limit;

Current measurement range: 0~100A all internal automatic switching ranges;

Voltage, current, frequency: ±0.2%;

Power: ±0.5% (COSφ>0.1), ±1.0% (0.02

Working temperature: -10℃~+40℃;

Working power supply: AC 160V~400V;

Volume: 40cm×32cm×18cm

Product alias

Transformer capacity characteristic tester, transformer characteristic tester
